XCANLED Series - Industrial Grade Floodlight (2,000 lumens)

Brand: Nemalux

  • Approved for use in general and hazardous locations.
  • Ambient temperature range is -40°C to +45°C.
  • Input voltage options are 12 to 24 VDC.
  • Ingress protection level is IP66.


Fixture weight is 2.05 kg | 4.5 lbs.

nemalux-xcan-series-led-dc-with-adjustable-mount-frosted-lens-600 NEMALUX-XCAN-DC-Application-6-600.jpg NEMALUX-XCAN-DC-Application-2-600.jpg NEMALUX-XCAN-DC-Application-1-600.jpg nemalux-xcan-series-led-dc-with-adjustable-mount-and-ir-coating-600.jpg

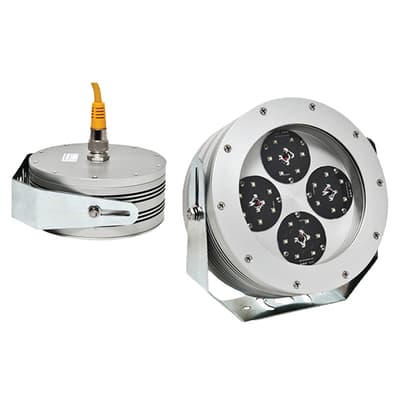

Nemalux's XCANLED is a compact LED floodlight. Certified for use in harsh and hazardous locations.
Features

The product features a robust construction that makes it suitable for both indoor and outdoor applications. It comes equipped with a choice of a 6-foot pre-wired cable or a quick disconnect option, providing versatility in installation. Users can select between a 100° flood or a 30° narrow beam profile, allowing for tailored lighting solutions to meet specific needs. Designed to withstand harsh and hazardous environments, this product is thermally managed to ensure maximum longevity during use. It has also received approval for operation in general and hazardous locations, enhancing its reliability and safety in diverse settings.

XCANLED Certifications and Safety Ratings

  • Certified for general location use under:
    • UL 2108
    • CSA C22.2 No. 250.0
  • The XCANLED-DC is also certified for hazardous location use under:
    • Class I, Division 2, Groups ABCD, T3

Documentation

1) Spec Sheets

2) Installation Manuals

3) Product Catalog
